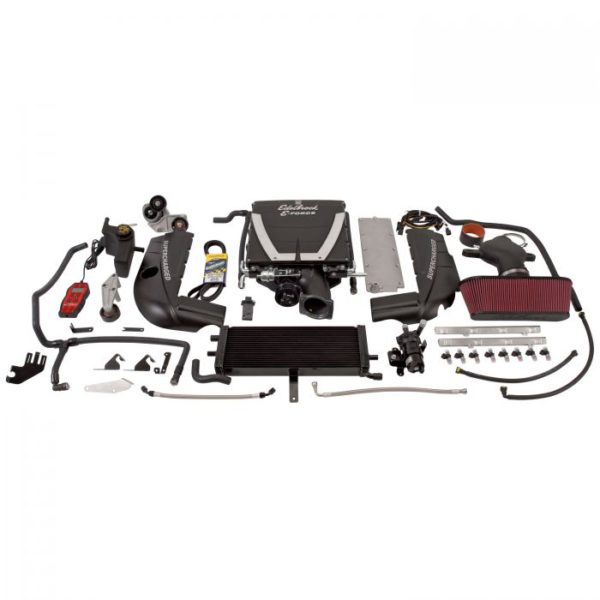

Edelbrock Stage 1 Supercharger Kit #1593 For 2005-07 Corvette LS2 W/ Tune
-
Starting at $250/mo with Affirm.
Description
The Edelbrock supercharger Stage 1 Street system part #1593 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 554 horsepower and 515 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1593 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
DOCUMENTS & INSTALLATION NOTES
Additional information
| Availability | Available |
|---|---|
| Application | Application Specific |
| UPC | 00085347015931 |
| System Type | Stage 1 – Street System |
| Vehicle Model | Corvette |
| Housing Material | Cast Aluminum |
| Gasket Or Seal Included | Yes |
| Mounting Hardware Included | Yes |
| Quantity | Kit |
| Oil Capacity | 150 mL |
| Center Housing Cooling Type | Intercooler |
| Internal Step Up | Yes |
| Mounting Bracket Included | Yes |
| Outside Pulley Diameter | 3.875 in |
| CARB Executive Order Number | D-215-89 |
| Maximum Torque | 515 ft-lb |
| Fuel Injector Type | 52 lb/hr |
| Maximum Horsepower | 554 |
| Availability Note | Available to Order |
| Warranty | 36 Months |
| Emissions Code | #17a455 EO Number: D-215-89 |
| Hazardous Materials Warning | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit http://www.P65warnings.ca.gov. |
| Installation Notes | Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Finish | Black Powder Coated |
| Maximum Boost Pressure | 5.5 PSI |
| Pulley Belt Width | 6-Rib |
| Universal Or Specific Fit | Specific |
